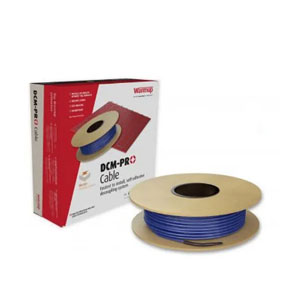

4m2 600w DCM-PRO HEATING WIRE

The DCM-PRO heating 4m² cable is inserted in between the castellation of the DCM-PRO Mat or Roll to accomplish a heating cable system suitable for most floor finishes. This is one of the fastest solutions for the installation of a heated decoupling system in all areas, installing electric underfloor heating in minutes with less tile adhesive.

WarmUp DCM-PRO System's innovative underfloor heating decoupling system can be installed in minutes with the added advantage of requiring less tile adhesive. The DCM-Pro's castellation's are designed to protect the heating wire allowing for easy safe and rapid tiling straight on top of the membrane. The open layout of the castellation's allow for easy pouring and even spread of self-levelling compound, without the worry of any holes or air gaps. The system suits all floor types and protects the floor finish from seasonal changes that may cause cracks. If you require technical advice or are undertaking a large project, please call 0208 838 8181 where experienced specialists are available to assist you Monday - Friday from 9.00 to 17.00 Key Features:

• Installs in minutes with less adhesive
• Can be used with all floor types including tiles, engineered wood, vinyl and carpet providing a constant output of 150W/m2
• Easily clips into the DCM-PRO Mat (sold separately) by gently pressing it in between the castellation's
• The cable can be spaced at 60mm, 90mm & 120mm depending on power requirements.
• No tools required to fit the cable
• THE DCM PRO MAT AND CABLE ARE SOLD SEPARATELY. YOU WILL REQUIRE BOTH FOR YOUR INSTALLATION

Technical Data:

• Operating voltage: 220 - 240V: 50Hz
• Thickness: 4.5mm (± 0.2mm)
• Inner/ outer wire insulation: advanced fluoropolymer (ECTFE)
• Output Rating: 150w/m2 (3 Castellation's - 90mm)
• Inner Insulation: Advanced Fluoropolymer (ETFE)
• IP Rating: IPX7
• Min. Insulation Temp: 5°C)
• 3m long Cold tail Connection
• Approvals: BEAB
• European compliant and CE marked
• To be used in conjunction with DCM-PRO Mat
• Please click on the documents for full Installation and Technical information

Please note:

• All electrical connections must be performed by a certified electrician
• The manufacturer includes a Safety Net Installation Guarantee and the product has a Lifetime Limited Warranty
• Check with the flooring manufacturer to ensure the floor is suitable for use with electric underfloor heating
